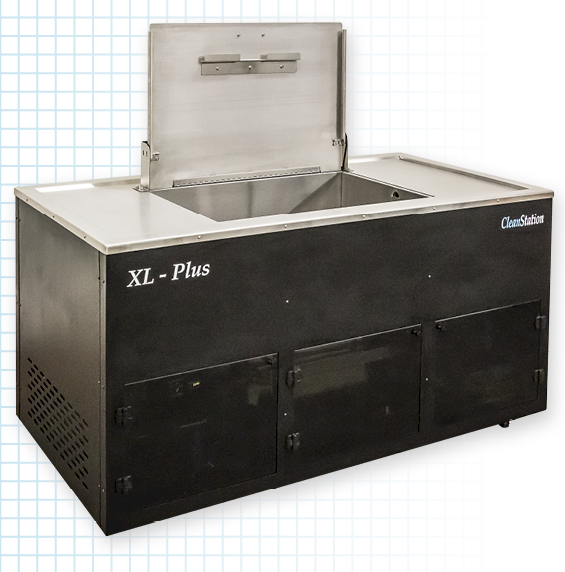

The XL Plus is one of the largest production CleanStation models available.

With a work envelope in excess of 23,000 cubic inches, the 100-gallon tank features a 360-degree multi-jet manifold powered by a 53-gallon-per-minute stainless steel pump to clean parts fast. Unlike ultrasonic cleaners, CleanStation systems are not load sensitive, offering efficient batch processing for maximum throughput.

The XL Plus features a fully-programmable microprocessor-controlled circulation heater, combined with an active cooling system to maintain optimal operating temperature.

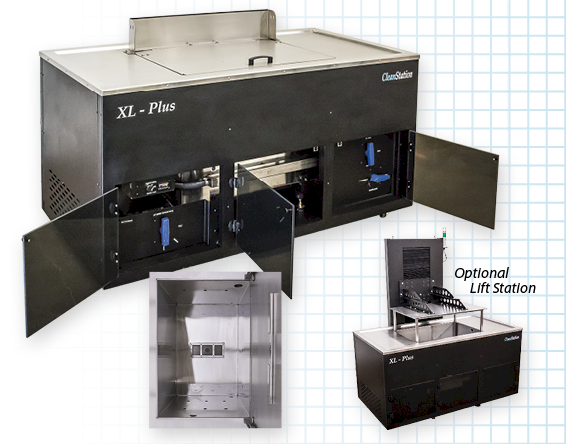

Options: Automated Lift System

For use with all FDM/ FFF 3-D printers
with soluble support.

Product Features

  • Large part capacity, high performance
  • Fast, efficient batch processing
  • Heavy duty, industrial grade
  • Stainless steel tank and basket
  • “One touch” automated control
  • Programmable for time and temperature
  • Quick warm up
  • 360-degree multi-jet manifold
  • Adjustable flow rate



  • Stainless steel ‘hose barb’ plumbing inlets and outlet
  • Locking casters
  • Hinged and locking tank lid
  • Recessed “no drip” top
  • Large capacity stainless steel parts basket
  • One-year warranty
  • Made in USA

Product Specifications

  • Work envelope 37″ x 24.5″ x 26.13″
  • Machine dimensions: 74.58″ x 39″ x 37.85″
  • Power requirement: 3-phase, 240VAC, 51 AMP (* 208)
  • Tank capacity: 23,686 cubic-inch, 100-gallon stainless steel tank
  • Shipping Weight: 1,230 lb.
