CleanStation DT3

CleanStation DT3 for FDM, the “original” desktop system with thousands of installations worldwide.

Fast, efficient, one-button operation or fully programmable

Easy to use, the DT3 utilizes patented “heat, agitation and flow”
technology, the most efficient process for removal of soluble
support material. Use the pre-programmed settings for “one
touch” operation or enjoy the flexibility of a fully-programmable
system and set your own time and temperature* for cleaning your 3-D printed models. The DT3 model features a generous 12 x 10 x 10 work envelope, a stainless-steel tank with integrated basket and lid, low-level cut-off switch and whisper quiet operation. The DT3-P is not load sensitive, so multiple parts are cleaned as effectively as a single part.

For use with Stratasys models: u-Print,
F170, F270, F370, 380 MC, 450 MC

Product Features

  • Fast warm up
  • Single-touch and fully automated control?
  • Programmable heat and time
  • Integrated lid and parts basket
  • Basket self-drains into tank
  • Quick-disconnect, appliance style plumbing



  • Chemical resistant stainless-steel tank
  • Recessed “no drip” top
  • High-efficiency, multi-point manifold
  • Low-level cut-off switch
  • “Whisper quiet” operation
  • Made in USA

Product Specifications

  • Work envelope: 12” x 10” x 10”
  • Tank capacity: 1200 cubic inch, 6 gallons
  • Machine dimensions: 23.5” x 21.3 “ x 19.25”
  • Power requirements: 120V, 15 AMP service
  • Programmable heat capacity: 1300 watts
  • Shipping weight 72 lbs.
*temperature setting not to exceed the maximum listed in the user manual   Download CleanStation DT3 PDF

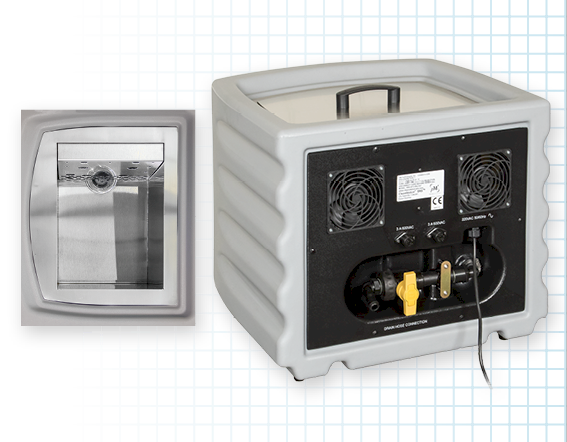

CleanStation DT3 - Back
