CleanStation
Lift System

For easy removal of large FDM parts from your CleanStation tank, use the Lift System, designed specifically for this product line.

This unit is engineered to handle torsion and stress specific to this type of lifting, with a 2,000-pound lift capacity. The lift has an integrated basket and is designed to move at a safe speed that allows liquid to drain from the prototype, so that there is no significant splash or flooding, of water or chemicals, outside of the tank. The high-quality components include linear bearings, an electric actuator and linear ball screws. The lift system is compatible with any CleanStation SRS XL or Omega machine.

Order the lift system with your CleanStation SRS unit and it will ship pre-installed. Upgrade your existing CleanStation SRS unit, and the lift will ship to your location, where your team can simply
install the system.

Product Features

  • One-button operation
  • Audible safety-motion light stack
  • Easy removal of large FDM parts
  • Keeps hands free from contact with
  • chemical bath
  • No special electrical requirements

Product Specifications

  • Voltage: 110 V
  • Capacity: 2,000 lbs.
  • Height: 86.04″
  • Depth: 5.67″
  • Shipping Weight: 1,091 lbs


Download PDF

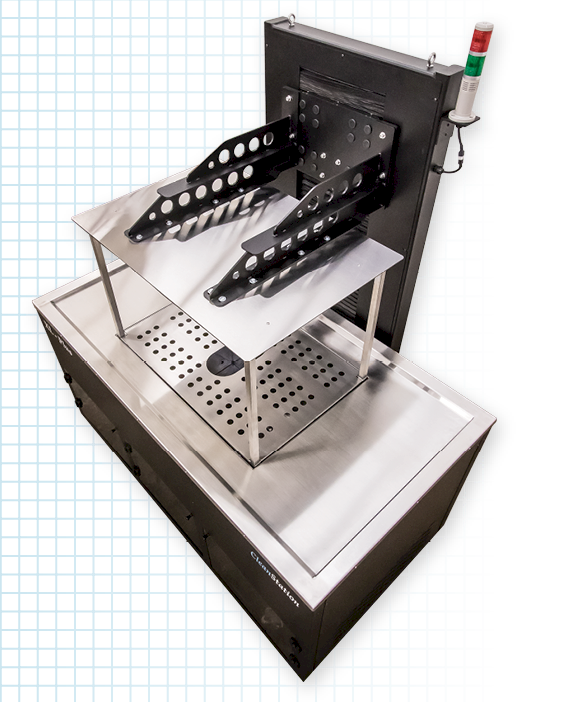

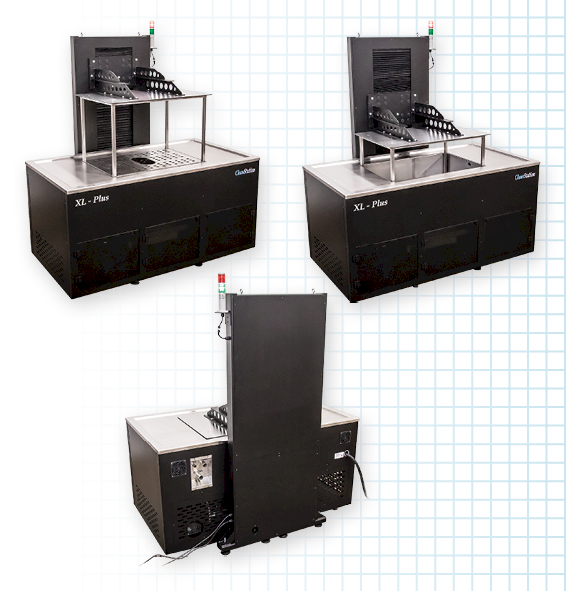

CleanStation XL Omega shown with optional lift system

Ask about the optional Lift Station available only for SRS XL-Plus and SRS Omega

Call 1-763-425-1383 for more information.
